Get Mass Properties, Weight, Volume and Area etc. in FreeCAD

Fc info macro 05

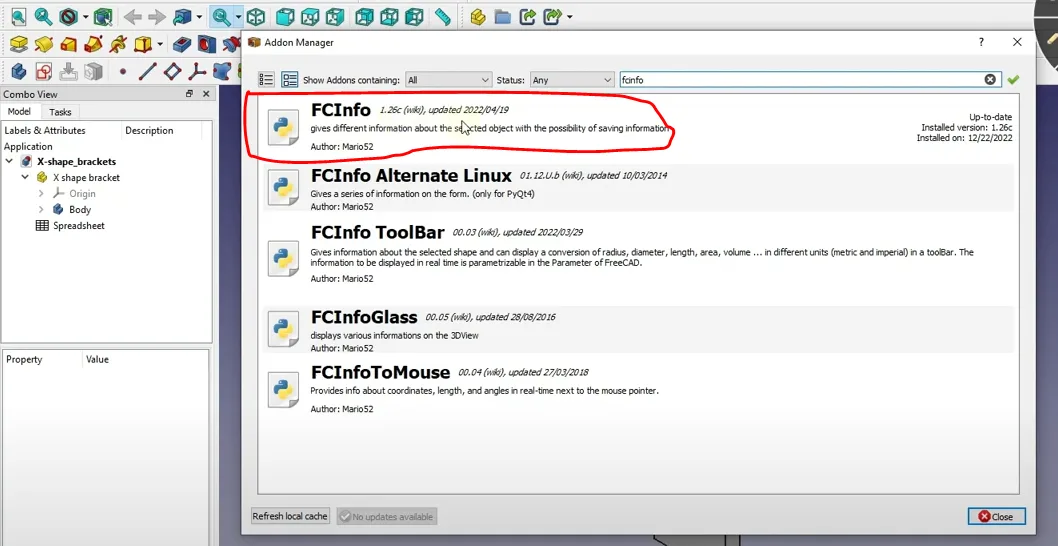

In my previous article we have learned how to Import Autodesk Inventor Part in FreeCAD In this article we will learn how to get Get Mass Properties, Weight, Volume and Area etc. in FreeCAD like Solidworks. In FreeCAD it is as easy as Solidworks to get this details for this we will a macro in FreeCAD known as FCInfo to install the macro head over to add on manager and search for fcinfo and you will get macro at top of the list as shown in the below image.

Freecad Ad 01

Also Read-:

Create Exploded Assembly with Animation in FreeCAD
Model Involute Gear in FreeCAD
How to Easily Array Body in FreeCAD

Fc info macro

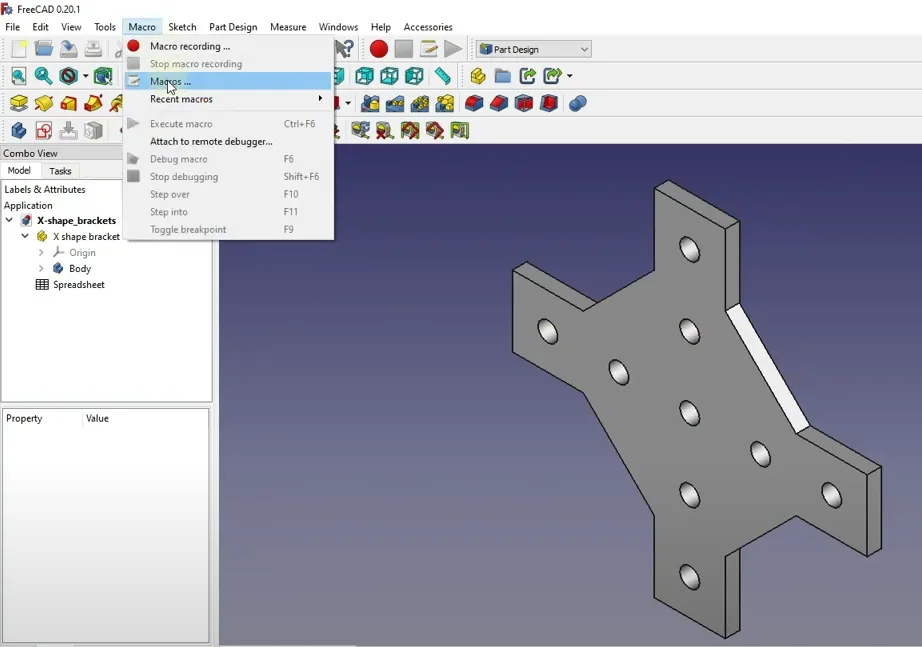

Now click on the macro and install it. Now click on Macro and then Macros as shown in the below image.

Fc info macro 02

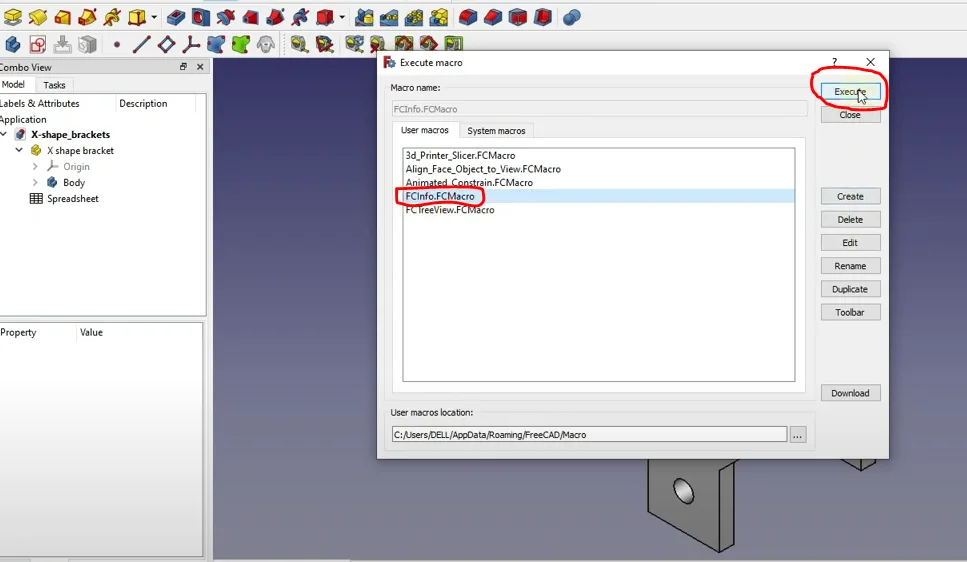

Now you will see the list in on installed macros on your system in list select FcInfo.FCMacro and click on Execute as shown in the below image.

Fc info macro 03

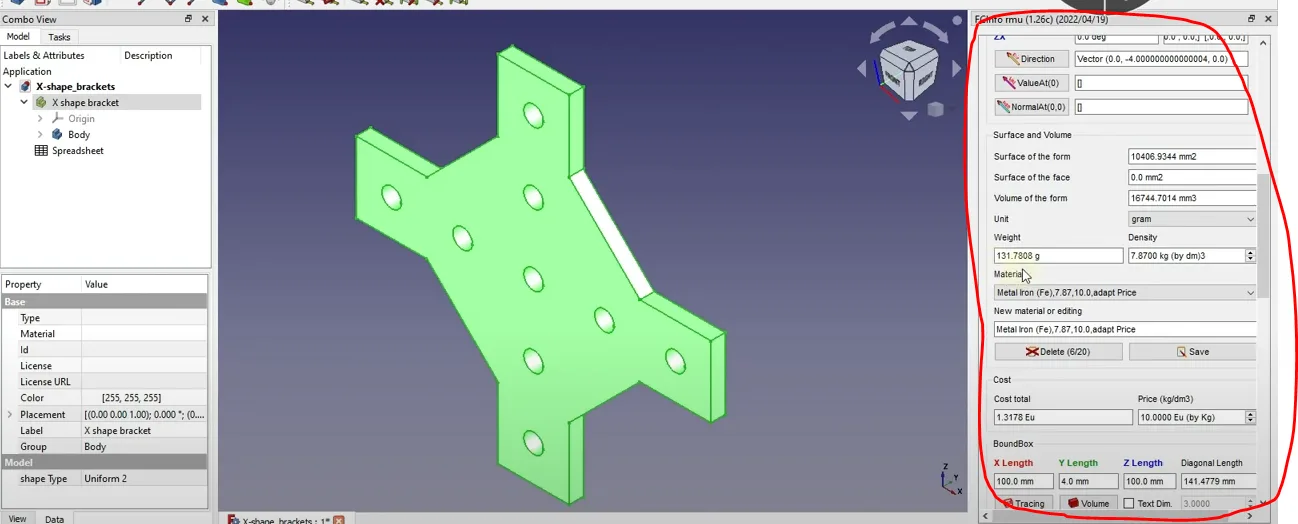

Now click on body in browser tree you will get all details related to the part as shown in the below image.



Fc info macro 04

I have modeled above part in FreeCAD and Solidworks and I found FCInfo macro very accurate with respect to SolidWorks. Fcinfo macro also works with elements of sketch in sketch mode. below is a combined image of Fcinfo produce when select object in browser tree.

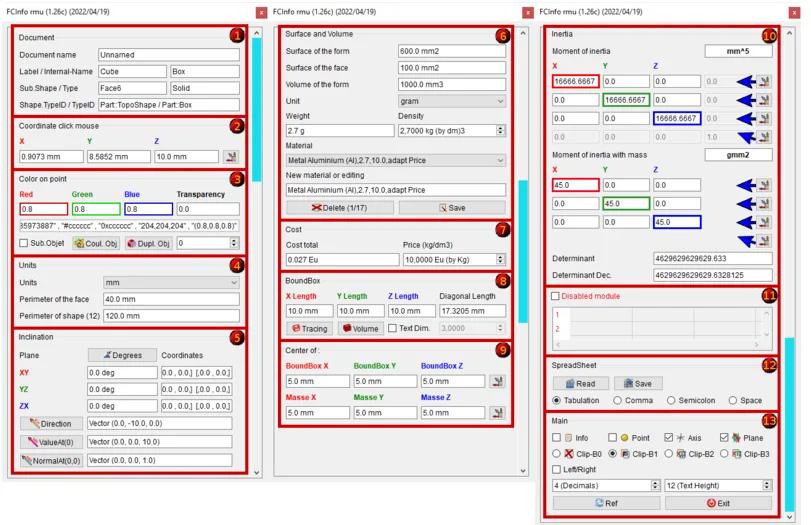

Fc info macro 05
Image Credit: https://wiki.freecad.org/
