Model Stud Guide in FreeCAD

Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned Model Ejector Bracket in FreeCAD. In this tutorial we will do modeling of Model Stud Guide in FreeCAD with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://www.mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Freecad Ad 01

Also Read-:

FreeCAD Part Modeling Tutorial 30
FreeCAD Part Modeling Tutorial 31
FreeCAD Part Modeling Tutorial 32

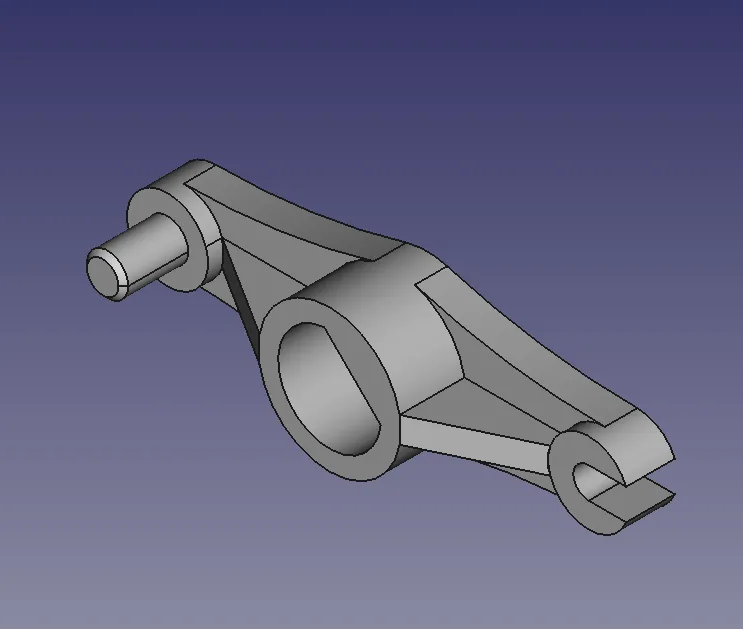

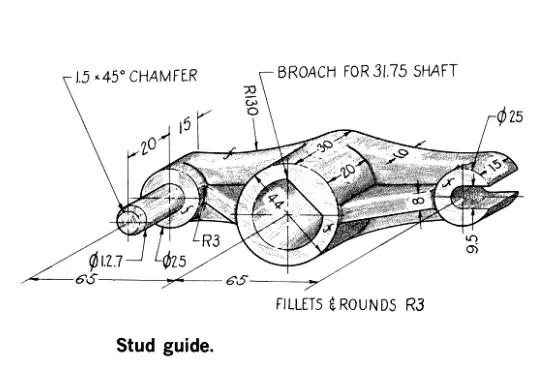

0

00

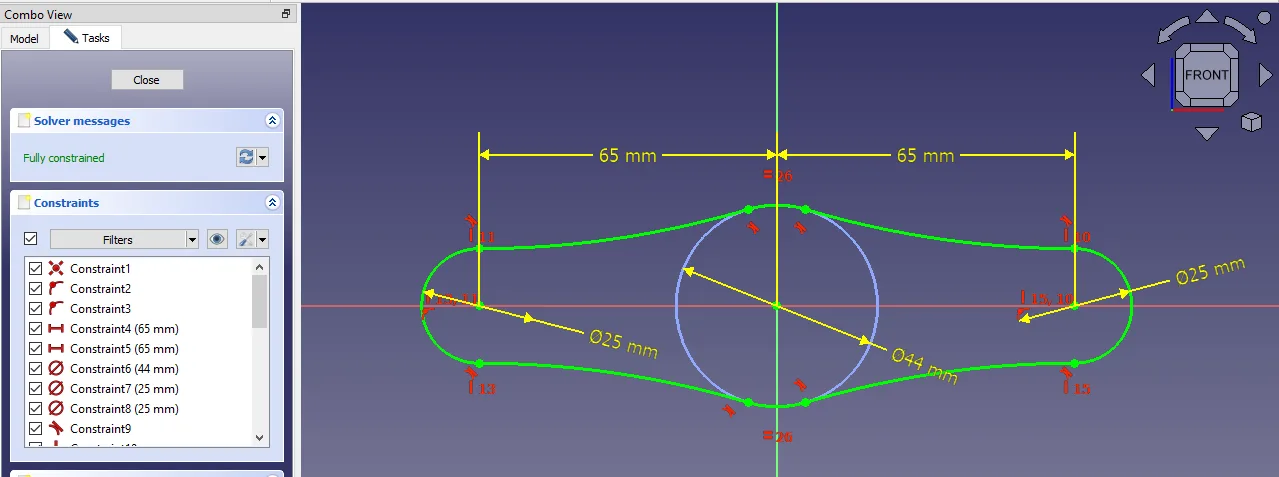

Select the front plane and create the below sketch.

01

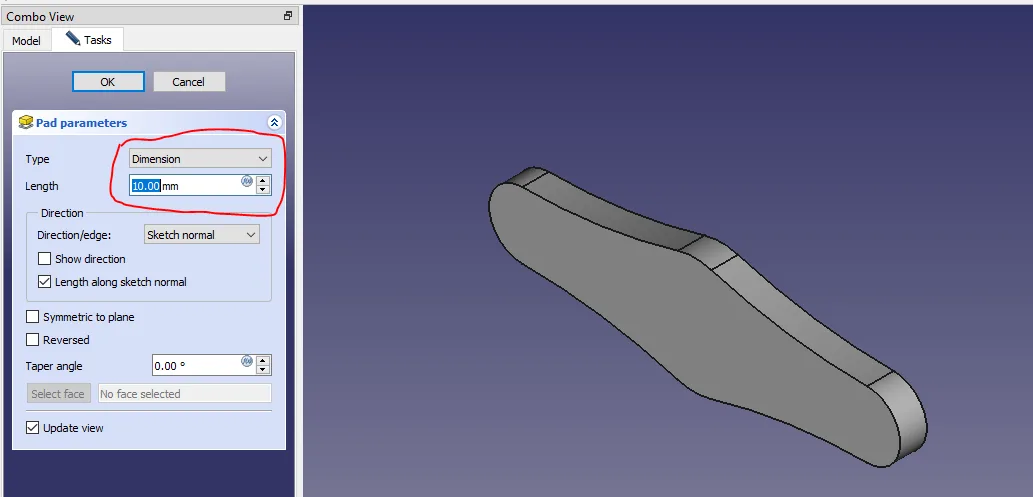

Now Extrude the sketch as shown in below image.

02

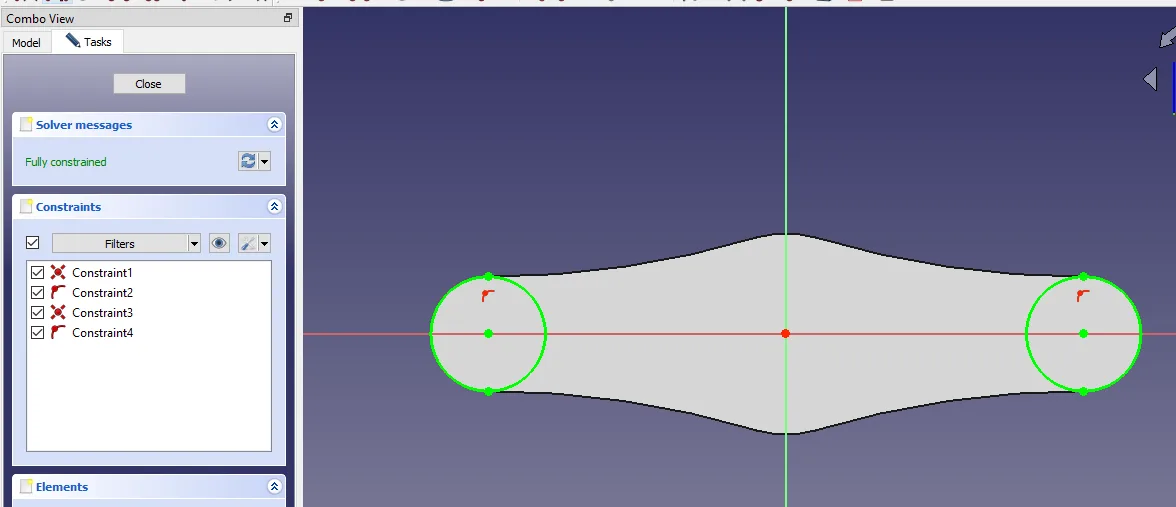

Now select the face and create sketch as shown in below image.

03

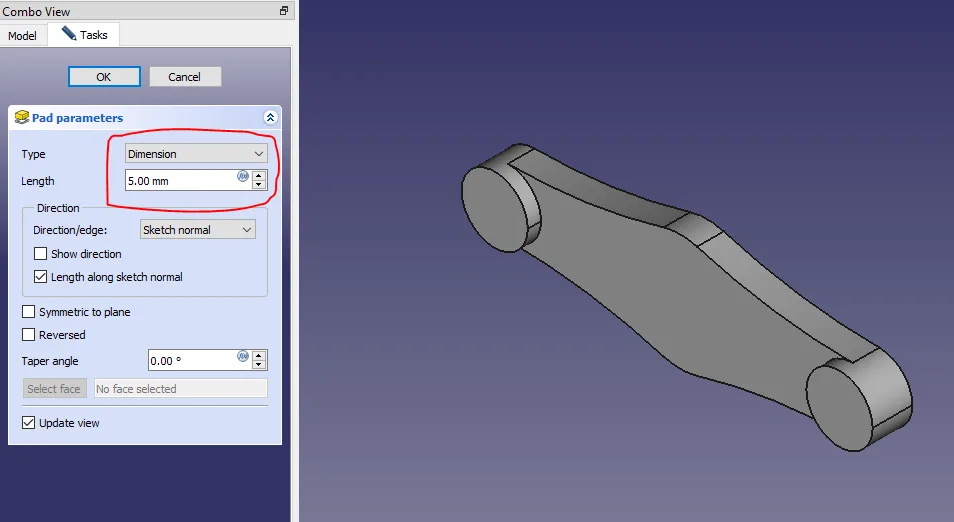

Now create the extrude of 5mm as shown in below image.

04

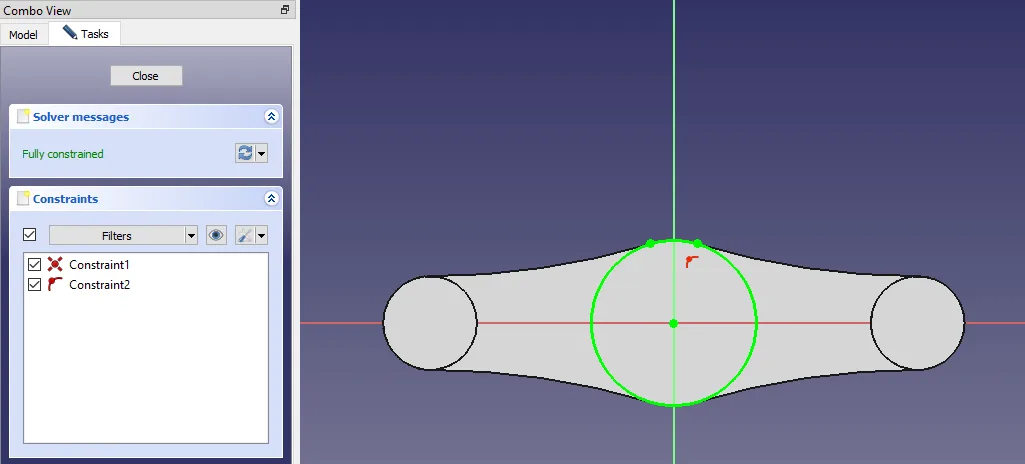

Now select the face and create the sketch.

05

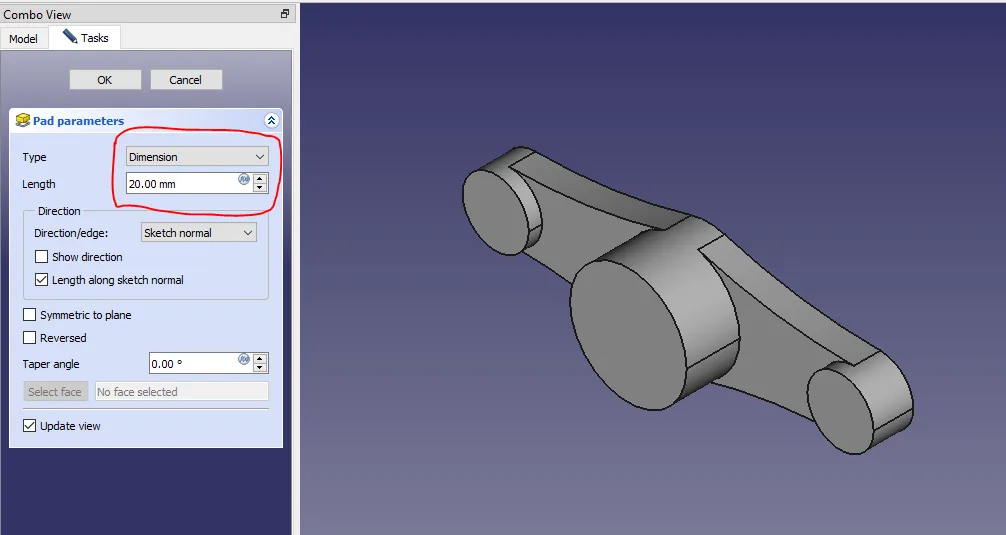

Now create the pad of 20mm as shown in below image.

06

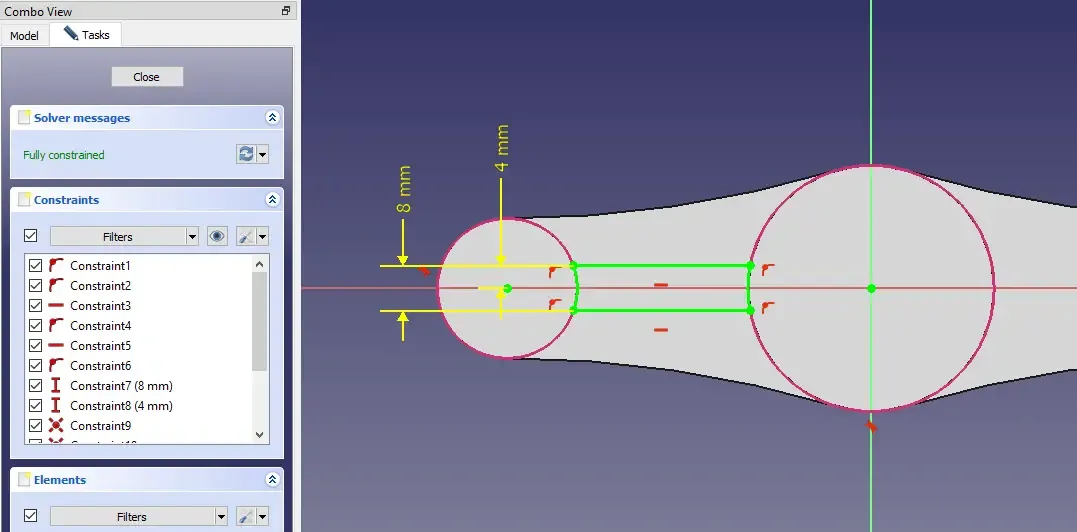

Now select the face and create the below sketch by projecting the edges.

07

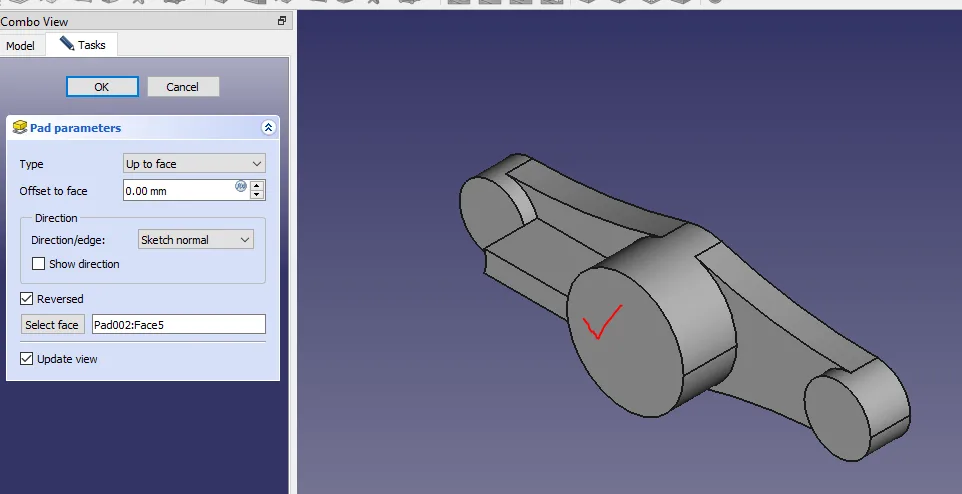

Now extrude the sketch as shown in below image.

08

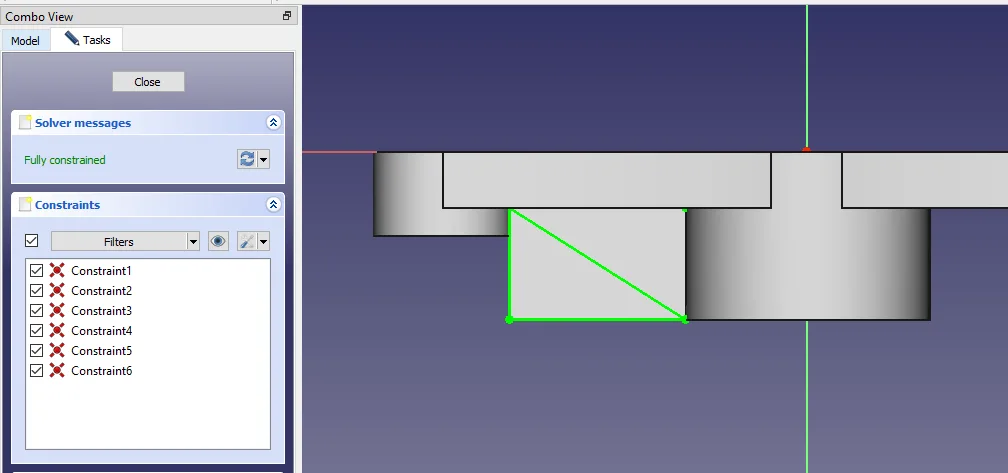

Now select the face and create the sketch.

09

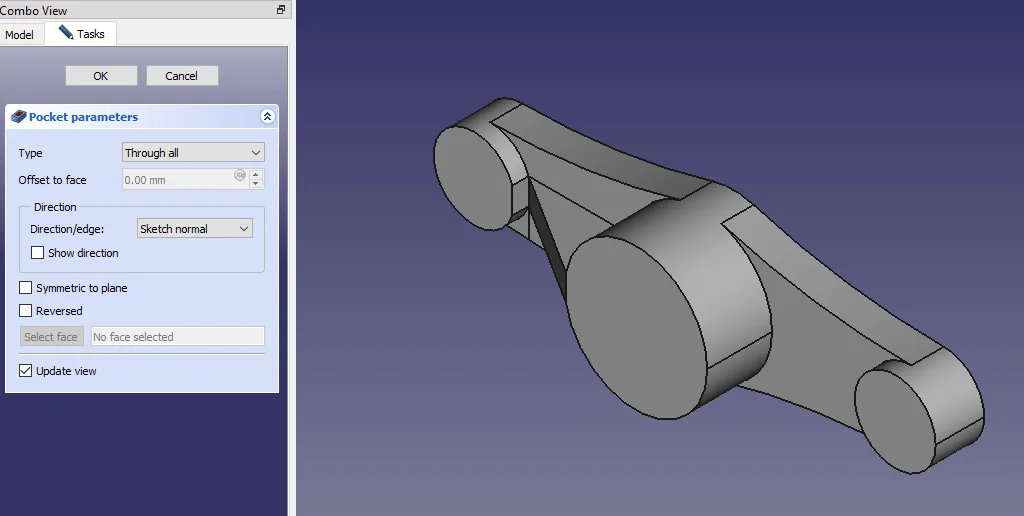

Now remove the material as shown in below image.

10

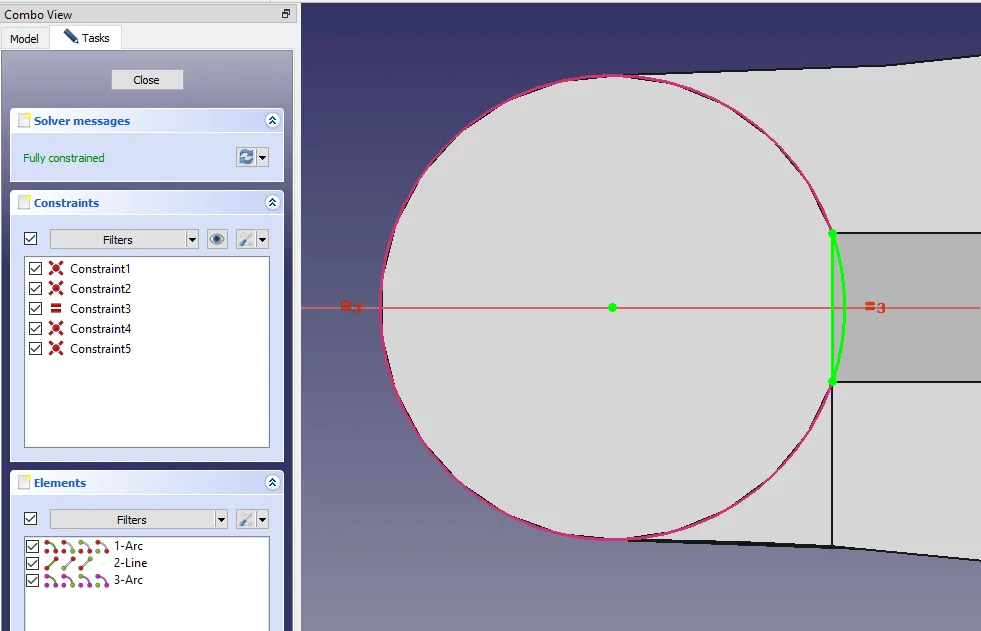

Now select the face and create the below sketch.

11

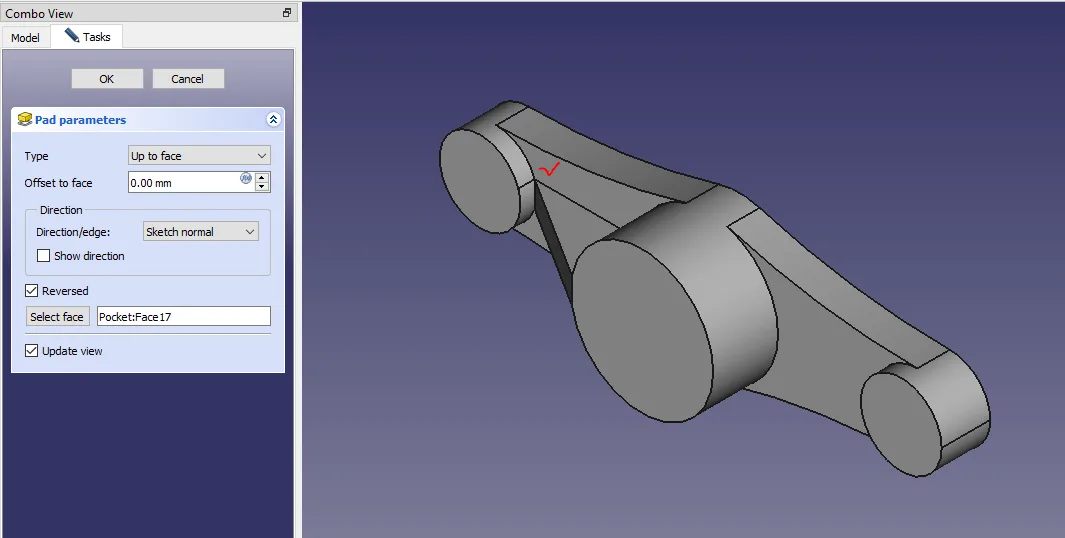

Now create the pad as shown in below image.

12

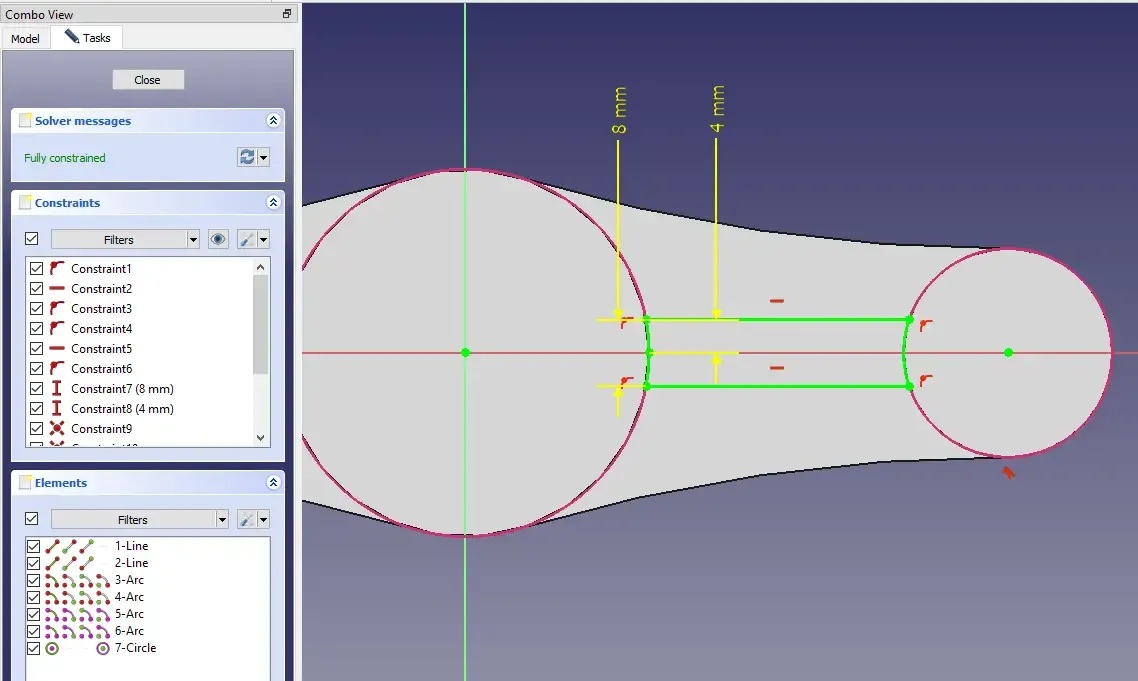

Now select the face and create the sketch as shown in below image.

13

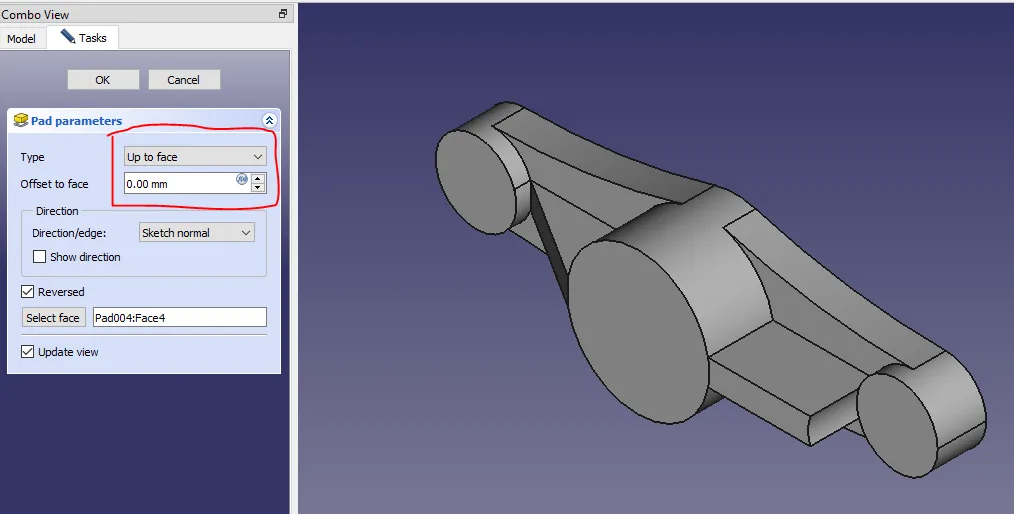

Now create the pad as shown in below image.

14

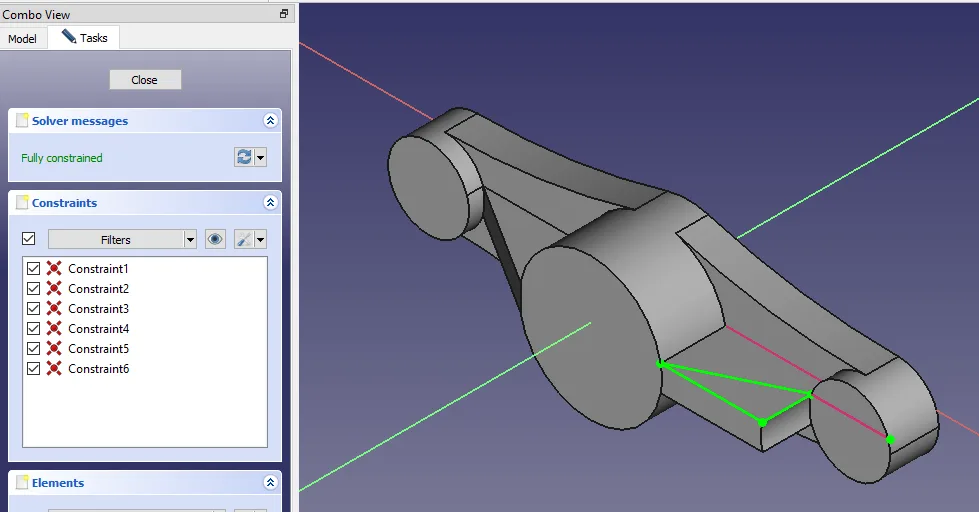

Now select the face and create the below sketch.

15

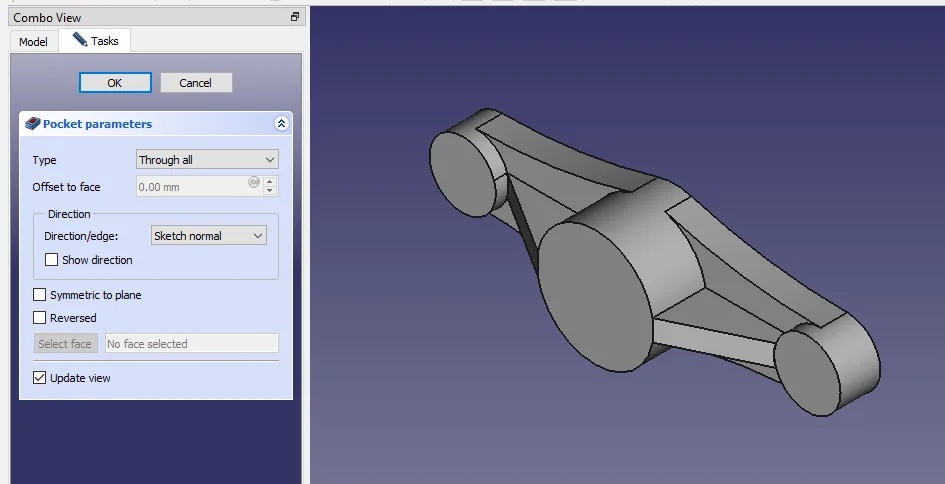

Now remove the material as shown in below image.

16

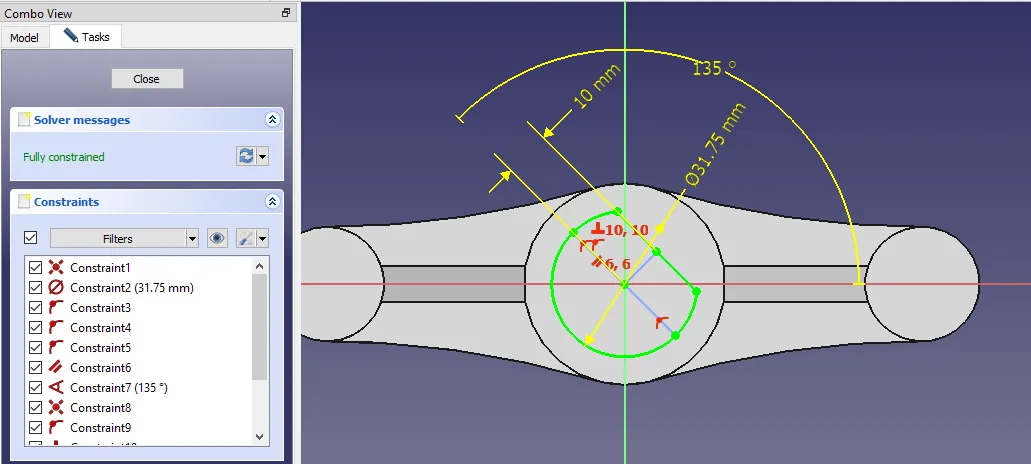

Now select the face and create the sketch as shown in below image.

17

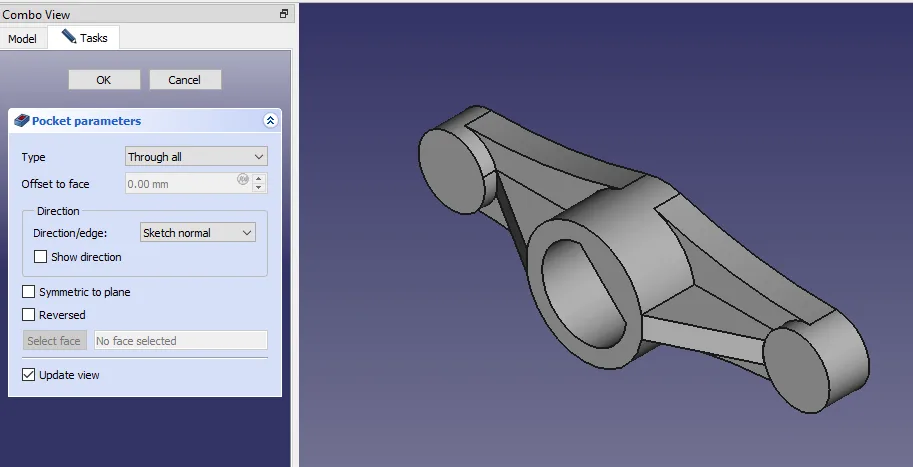

Now remove the material as shown in below image.

18

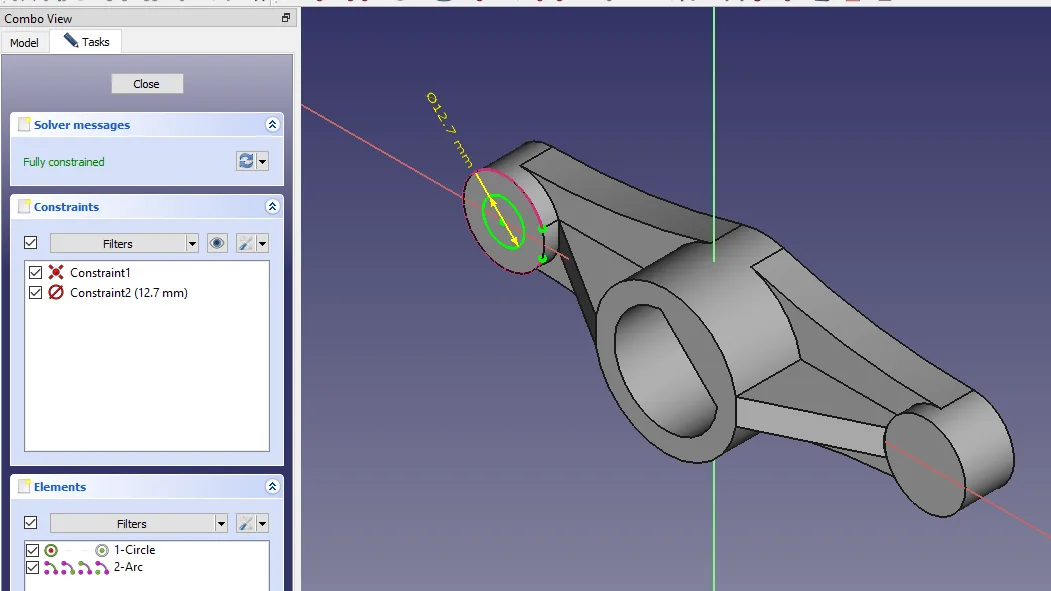

Now select the face and create below sketch.

19

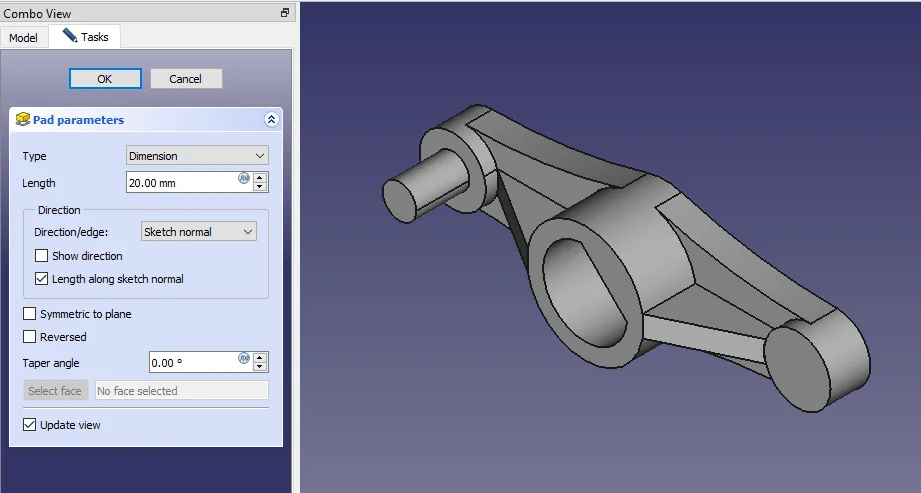

Now create the pad as shown in below image.

20

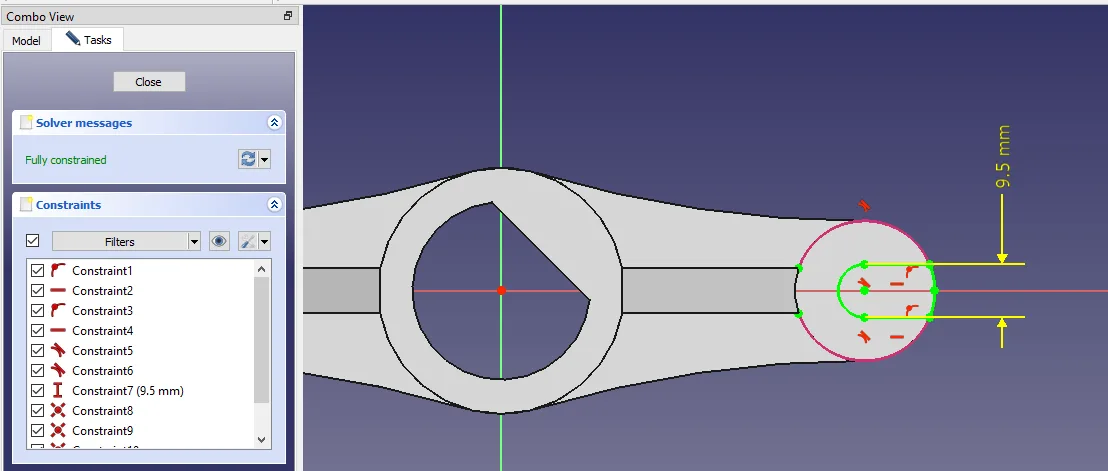

Now select the face and project the geometry and create the below sketch.

21

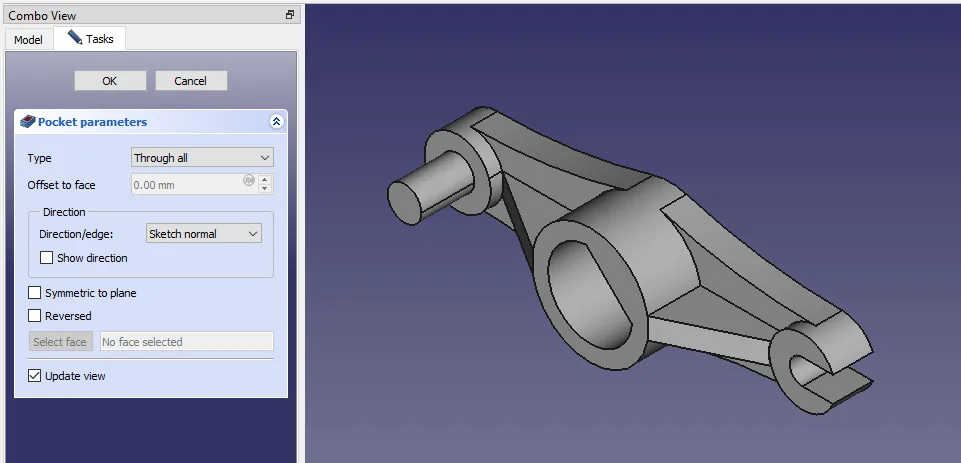

Now remove the material as shown in below image.

22

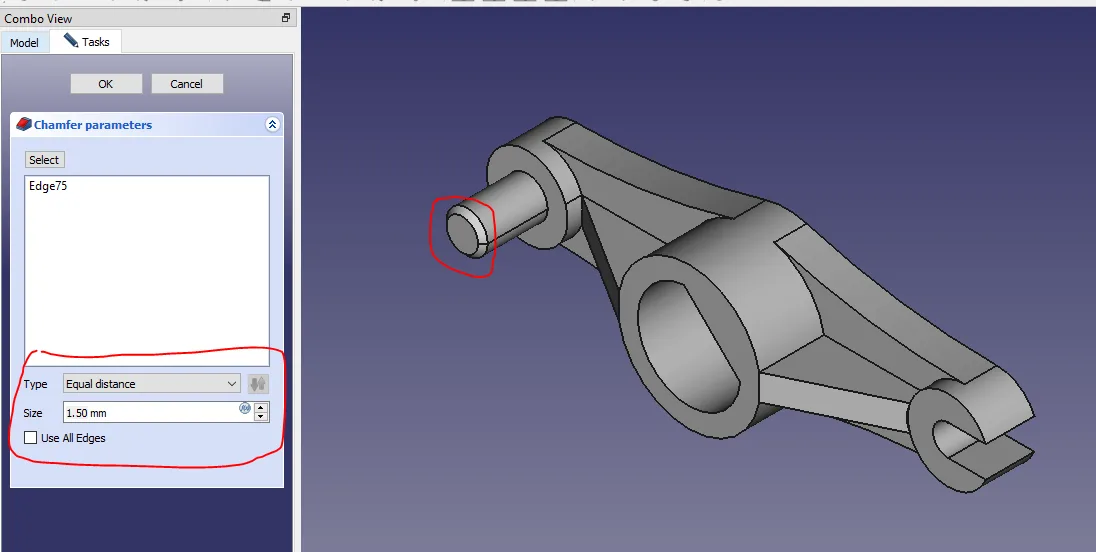

Now select the edge and give chamfer of 1.5mm as shown in below image.

23
