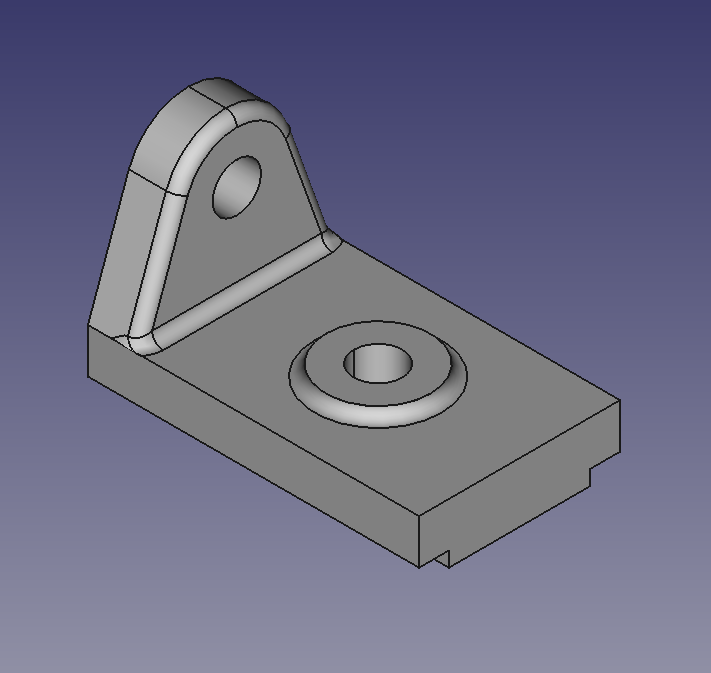

Model Cut-off Holder in FreeCAD

Hello friends welcome to FreeCAD tutorial in our previous tutorial we have learned Model Frame Guide in FreeCAD. In this tutorial we will do modeling of Cut-off Holder with the help of Part design workbench of FreeCAD. You can also download my source file of the tutorial at https://www.mechnexus.com/mechnexus-youtube-tutorial-source-file/ so let’s start our tutorial.

Freecad Ad 01

Also Read:

Cut-off Holder 2D Drawing

image_2023-09-20_231956470

Select XZ Plane and create below profile.

image_2023-09-20_232102372

Now Extrude the Profile as shown in below image.

image_2023-09-20_232203731

Select the face and create below profile.

image_2023-09-20_232524068

Now remove the material for above sketch.

image_2023-09-20_232813109

Now Mirror the above feature.

image_2023-09-20_233038597

Now select the face and create below sketch.

image_2023-09-20_233218279

Now remove the material for above profile.

image_2023-09-20_233320227

Now mirror the above feature along XZ plane.

image_2023-09-20_233452224

Now create the sketch for hole.

image_2023-09-20_233704706

Remove the material as shown.

image_2023-09-20_233833287

Select the face and create below profile.

image_2023-09-20_233946789

Now extrude the above profile.

image_2023-09-20_234056480

Now select the face and create below Profile.

image_2023-09-20_234221052

Now remove the material for above hole.

image_2023-09-20_234324814

Now give R3 fillet to the edges as shown in 2D drawing.

image_2023-09-20_234517130
